Interactions

• Operation
  • Multiple Controls on an Action
  • Multiple Interactios on a Binding
  • Timeouts
• Using Interactions
  • Interactions applied to Bindings
  • Interactions applied to Actions
• Predefined Interactions
  • Default Interaction
  • Press
  • Hold
  • Tap
  • SlowTap
  • MultiTap
• Custom Interactions

An Interaction represents a specific input pattern. For example, a hold is an Interaction that requires a Control to be held for at least a minimum amount of time.

Interactions drive responses on Actions. You can place them on individual Bindings or an Action as a whole, in which case they apply to every Binding on the Action. At runtime, when a particular interaction completes, this triggers the Action.

Operation

An Interaction has a set of distinct phases it can go through in response to receiving input.

Phase	Description
Waiting	The Interaction is waiting for input.
Started	The Interaction has been started (that is, it received some of its expected input), but is not complete yet.
Performed	The Interaction is complete.
Canceled	The Interaction was interrupted and aborted. For example, the user pressed and then released a button before the minimum time required for a hold Interaction to complete.

Not every Interaction triggers every phase, and the pattern in which specific Interactions trigger phases depends on the Interaction type.

While Performed is typically the phase that triggers the actual response to an Interaction, Started and Canceled can be useful for providing UI feedback while the Interaction is in progress. For example, when a hold is Started, the app can display a progress bar that fills up until the hold time has been reached. If, however, the hold is Canceled before it completes, the app can reset the progress bar to the beginning.

The following example demonstrates this kind of setup with a fire Action that the user can tap to fire immediately, or hold to charge:

var fireAction = new InputAction("fire");
fireAction.AddBinding("<Gamepad>/buttonSouth")
    // Tap fires, slow tap charges. Both act on release.
    .WithInteractions("tap;slowTap");

fireAction.started +=
    context =>
    {
        if (context.Interaction is SlowTapInteraction)
            ShowChargingUI();
    };

fireAction.performed +=
    context =>
    {
        if (context.Interaction is SlowTapInteraction)
            ChargedFire();
        else
            Fire();
    };

fireAction.canceled +=
    _ => HideChargingUI();

Multiple Controls on an Action

If you have multiple Controls bound to a Binding or an Action which has an Interaction, then the Input System first applies the Control conflict resolution logic to get a single value for the Action, which it then feeds to the Interaction logic. Any of the bound Controls can perform the Interaction.

Multiple Interactions on a Binding

If multiple Interactions are present on a single Binding or Action, then the Input System checks the Interactions in the order they are present on the Binding. The code example above illustrates this example. The Binding on the fireAction Action has two Interactions: WithInteractions("tap;slowTap"). The tap Interaction gets a first chance at interpreting the input from the Action. If the button is pressed, the Action calls the Started callback on the tap Interaction. If the user keeps holding the button, the tap Interaction times out, and the Action calls the Canceled callback for the tap Interaction and starts processing the slow tap Interaction (which now receives a Started callback).

At any one time, only one Interaction can be "driving" the action (that is, it gets to determine the action's current phase). If an Interaction higher up in the stack cancels, Interactions lower down in the stack can take over.

Timeouts

Interactions might need to wait a certain time for a specific input to occur or to not occur. An example of this is the Hold interaction which, after a button is pressed, has to wait for a set duration until the "hold" is complete. To do this, an interaction installs a timeout using SetTimeout.

It can be useful to know how much of a timeout is left for an interaction to complete. For example, you might want to display a bar in the UI that is charging up while the interaction is waiting to complete. To query the percentage to which a timeout has completed, use GetTimeoutCompletionPercentage.

// Returns a value between 0 (inclusive) and 1 (inclusive).
var warpActionCompletion = playerInput.actions["warp"].GetTimeoutCompletionPercentage();

Note that each Interaction can have its own separate timeout (but only a single one at any one time). If multiple interactions are in effect, then GetTimeoutCompletionPercentage will only use the timeout of the one interaction that is currently driving the action.

Some Interactions might involve multiple timeouts in succession. In this case, knowing only the completion of the currently running timeout (if any) is often not useful. An example is MultiTapInteraction, which involves a timeout on each individual tap, as well as a timeout in-between taps. The Interaction is complete only after a full tap sequence has been performed.

An Interaction can use SetTotalTimeoutCompletionTime to inform the Input System of the total time it will run timeouts for.

Using Interactions

You can install Interactions on Bindings or Actions.

Interactions applied to Bindings

When you create Bindings for your Actions, you can choose to add Interactions to the Bindings.

If you're using Input Action Assets, you can add any Interaction to your Bindings in the Input Action editor. Once you created some Bindings, select the Binding you want to add Interactions to, so that the right pane of the window shows the properties for that Binding. Next, click on the plus icon on the Interactions foldout to open a list of all available Interactions types. Choose an Interaction type to add an Interaction instance of that type. The Interaction now appears in the Interactions foldout. If the Interaction has any parameters, you can now edit them here as well:

To remove an Interaction, click the minus button next to it. To change the order of Interactions, click the up and down arrows.

If you create your Bindings in code, you can add Interactions like this:

var Action = new InputAction();
action.AddBinding("<Gamepad>/leftStick")
    .WithInteractions("tap(duration=0.8)");

Interactions applied to Actions

Applying Interactions directly to an Action is equivalent to applying them to all Bindings for the Action. It is thus more or less a shortcut that avoids manually adding the same Interaction(s) to each of the Bindings.

If Interactions are applied both to an Action and to its Bindings, then the effect is the same as if the Action's Interactions are appended to the list of Interactions on each of the Bindings. This means that the Binding's Interactions are applied first, and then the Action's Interactions are applied after.

You can add and edit Interactions on Actions in the Input Action Assets editor window the same way as you would do for Bindings: select an Action to Edit, then add the Interactions in the right window pane.

If you create your Actions in code, you can add Interactions like this:

var Action = new InputAction(Interactions: "tap(duration=0.8)");

Predefined Interactions

The Input System package comes with a set of basic Interactions you can use. If an Action has no Interactions set, the system uses its default Interaction.

Note: The built-in Interactions operate on Control actuation and don't use Control values directly. The Input System evaluates the pressPoint parameters against the magnitude of the Control actuation. This means you can use these Interactions on any Control which has a magnitude, such as sticks, and not just on buttons.

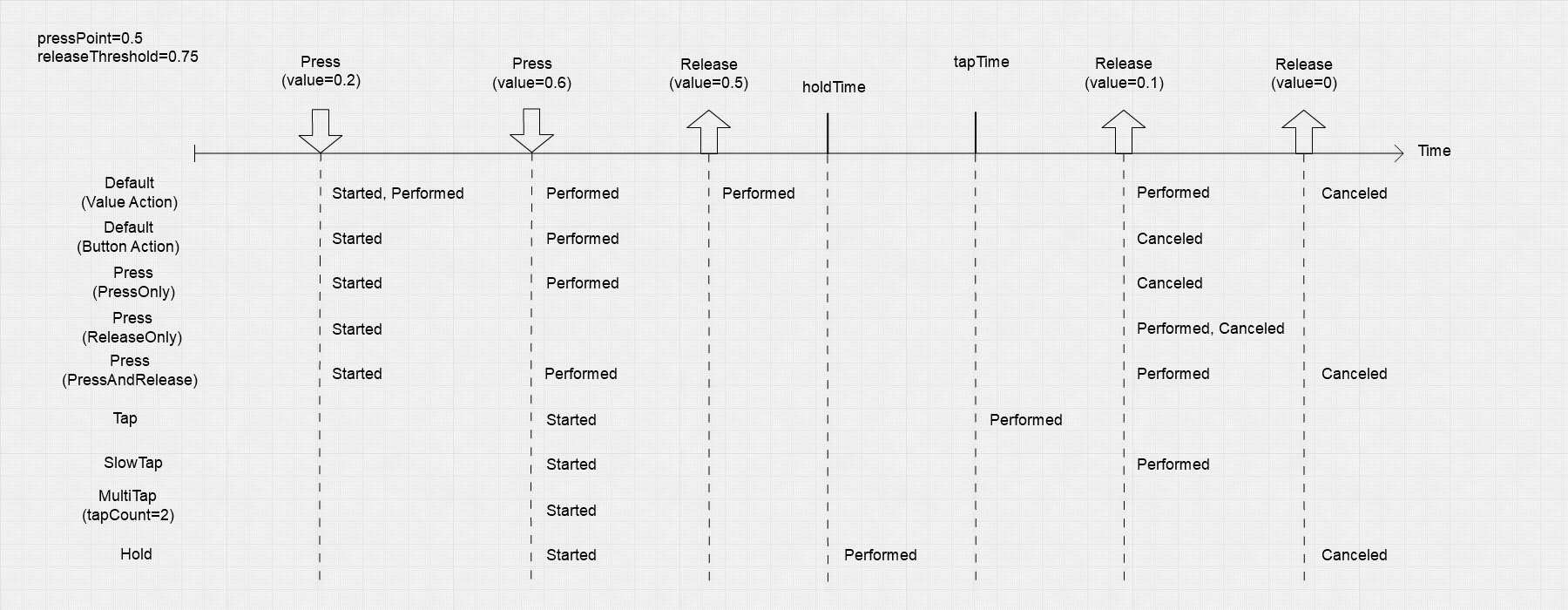

The following diagram shows the behavior of the built-in Interactions for a simple button press.

Default Interaction

If you haven't specifically added an Interaction to a Binding or its Action, the default Interaction applies to the Binding.

Value type Actions have the following behavior:

1. As soon as a bound Control becomes actuated, the Action goes from Waiting to Started, and then immediately to Performed and back to Started. One callback occurs on InputAction.started, followed by one callback on InputAction.performed.
2. For as long as the bound Control remains actuated, the Action stays in Started and triggers Performed whenever the value of the Control changes (that is, one call occurs to InputAction.performed).
3. When the bound Control stops being actuated, the Action goes to Canceled and then back to Waiting. One call occurs to InputAction.canceled.

Button type Actions have the following behavior:

1. As soon as a bound Control becomes actuated, the Action goes from Waiting to Started. One callback occurs on InputAction.started.
2. If a Control then reaches or exceeds the button press threshold, the Action goes from Started to Performed. One callback occurs on InputAction.performed. The default value of the button press threshold is defined in the input settings. However, an individual control can override this value.
3. Once the Action has Performed, if all Controls then go back to a level of actuation at or below the release threshold, the Action goes from Performed to Canceled. One call occurs to InputAction.canceled.
4. If the Action never went to Performed, it will go to Canceled as soon as all Controls are released. One call occurs to InputAction.canceled.

PassThrough type Actions have a simpler behavior. The Input System doesn't try to track bound Controls as a single source of input. Instead, it triggers a Performed callback for each value change.

Callback	InputActionType.Value	InputActionType.Button	InputActionType.PassThrough
started	Control(s) changed value away from the default value.	Button started being pressed but has not necessarily crossed the press threshold yet.	First Control actuation after Action was enabled.
performed	Control(s) changed value.	Button was pressed to at least the button press threshold.	Control changed value.
canceled	Control(s) are no longer actuated.	Button was released. If the button was pressed above the press threshold, the button has now fallen to or below the release threshold. If the button was never fully pressed, the button is now back to completely unpressed.	Action is disabled.

Press

You can use a PressInteraction to explicitly force button-like interactions. Use the behavior parameter to select if the Interaction should trigger on button press, release, or both.

Parameters	Type	Default value
pressPoint	float	InputSettings.defaultButtonPressPoint
behavior	PressBehavior	PressOnly

Callbacks/behavior	PressOnly	ReleaseOnly	PressAndRelease
started	Control magnitude crosses pressPoint	Control magnitude crosses pressPoint	Control magnitude crosses pressPoint
performed	Control magnitude crosses pressPoint	Control magnitude goes back below pressPoint	- Control magnitude crosses pressPoint or - Control magnitude goes back below pressPoint
canceled	not used	not used	not used

Hold

A HoldInteraction requires the user to hold a Control for duration seconds before the Input System triggers the Action.

Parameters	Type	Default value
duration	float	InputSettings.defaultHoldTime
pressPoint	float	InputSettings.defaultButtonPressPoint

Callbacks
started	Control magnitude crosses pressPoint.
performed	Control magnitude held above pressPoint for >= duration.
canceled	Control magnitude goes back below pressPoint before duration (that is, the button was not held long enough).

Tap

A TapInteraction requires the user to press and release a Control within duration seconds to trigger the Action.

Parameters	Type	Default value
duration	float	InputSettings.defaultTapTime
pressPoint	float	InputSettings.defaultButtonPressPoint

Callbacks
started	Control magnitude crosses pressPoint.
performed	Control magnitude goes back below pressPoint before duration.
canceled	Control magnitude held above pressPoint for >= duration (that is, the tap was too slow).

SlowTap

A SlowTapInteraction requires the user to press and hold a Control for a minimum duration of duration seconds, and then release it, to trigger the Action.

Parameters	Type	Default value
duration	float	InputSettings.defaultSlowTapTime
pressPoint	float	InputSettings.defaultButtonPressPoint

Callbacks
started	Control magnitude crosses pressPoint.
performed	Control magnitude goes back below pressPoint after duration.
canceled	Control magnitude goes back below pressPoint before duration (that is, the tap was too fast).

MultiTap

A MultiTapInteraction requires the user to press and release a Control within tapTime seconds tapCount times, with no more then tapDelay seconds passing between taps, for the Interaction to trigger. You can use this to detect double-click or multi-click gestures.

Parameters	Type	Default value
tapTime	float	InputSettings.defaultTapTime
tapDelay	float	2 * tapTime
tapCount	int	2
pressPoint	float	InputSettings.defaultButtonPressPoint

Callbacks
started	Control magnitude crosses pressPoint.
performed	Control magnitude went back below pressPoint and back up above it repeatedly for tapCount times.
canceled	- After going back below pressPoint, Control magnitude did not go back above pressPoint within tapDelay time (that is, taps were spaced out too far apart). or - After going back above pressPoint, Control magnitude did not go back below pressPoint within tapTime time (that is, taps were too long).

Writing custom Interactions

You can also write a custom Interaction to use in your Project. You can use custom Interactions in the UI and code the same way you use built-in Interactions. Add a class implementing the IInputInteraction interface, like this:

// Interaction which performs when you quickly move an
// axis all the way from extreme to the other.
public class MyWiggleInteraction : IInputInteraction
{
    public float duration = 0.2;

    void Process(ref InputInteractionContext context)
    {
        if (context.timerHasExpired)
        {
            context.Canceled();
            return;
        }

        switch (context.phase)
        {
            case InputActionPhase.Waiting:
                if (context.Control.ReadValue<float>() == 1)
                {
                    context.Started();
                    context.SetTimeout(duration);
                }
                break;

            case InputActionPhase.Started:
                if (context.Control.ReadValue<float>() == -1)
                    context.Performed();
                break;
        }
    }

    // Unlike processors, Interactions can be stateful, meaning that you can keep a
    // local state that mutates over time as input is received. The system might
    // invoke the Reset() method to ask Interactions to reset to the local state
    // at certain points.
    void Reset()
    {
    }
}

Now, you need to tell the Input System about your Interaction. Call this method in your initialization code:

InputSystem.RegisterInteraction<MyWiggleInteraction>();

Your new Interaction is now available in the Input Action Asset Editor window. You can also add it in code like this:

var Action = new InputAction(Interactions: "MyWiggle(duration=0.5)");
