Import Splatmaps
The Terrain Splatmaps tool lets you import, preview, and adjust splatmaps on multiple Terrain tiles.
Splatmap list
The reorderable Splatmaps list lets you view the splatmaps you are working with. You can import splatmaps from Terrain selected in Scene view, or add new splatmap Textures.
Use the Import from Selected Terrain button to import splatmaps from a selected Terrain. Use the Add (+) and Remove (-) buttons on the bottom right to add or remove a splatmap. Drag a splatmap row, and move it up or down to change its position in the list.

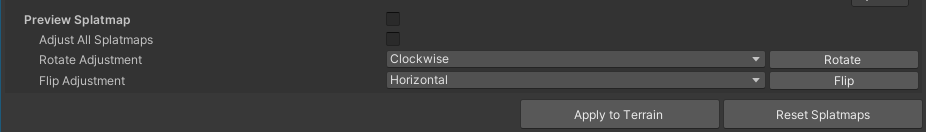

Splatmap preview
Preview Splatmap lets you view splatmaps on Terrain tiles.
| Property | Description |
|---|---|
| Preview Splatmaps | Enable this checkbox to preview the splatmaps in the list on selected Terrain tiles. |
| Adjust All Splatmaps | Enable this checkbox to adjust all splatmaps in the list. |
| Rotate Adjustment | Select Clockwise or CounterClockwise to control the rotation direction. Click the Rotate button to rotate splatmaps in the preview. |
| Flip Adjustment | Select Horizontal or Vertical to control the flip direction. Click the Flip button to flip splatmaps in the preview. |
| Apply to Terrain | Click this button to apply splatmap data to the selected Terrain tiles. |
| Reset Splatmaps | Click this button to remove splatmap data from the selected Terrain tiles, and set all splatmaps to their default values. |
