Standalone Player Support

The Burst compiler supports Standalone Players - see Burst AOT Requirements

Usage

When Burst compiles code for the Standalone Player, with the exception of iOS, it will create a single dynamic library and place it into the standard plugins folder for that particular player type. e.g. on Windows, it is in the path Data/Plugins/lib_burst_generated.dll
This library is loaded by the Job system runtime the first time a Burst compiled method is invoked.

For iOS, static libraries are generated instead, due to requirements for submitting to Test Flight.

Prior to Unity 2019.1, the settings for AOT compilation are shared with the Jobs Menu.
In later Unity versions (2019.1 and beyond), the settings for AOT compilation are configured via Burst AOT Settings.

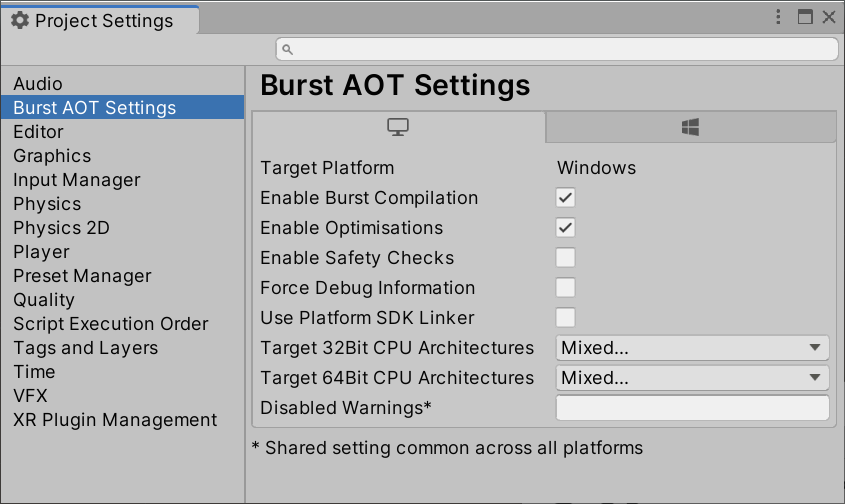

Burst AOT Settings

When a project uses AOT compilation, you can control Burst behavior using the Burst AOT Settings section of the Project Settings window. The AOT settings override the Burst settings on the Jobs menu when you make a standalone build of your project.

Burst AOT Settings

  • Target Platform: Shows the current desktop platform - can be changed via the Unity Build Settings.. dialog.
  • Enable Burst Compilation: Turns Burst entirely on/off for the currently selected platform.
  • Enable Optimizations: Turns Burst optimizations on/off.
  • Force Debug Information: Forces Burst to generate debug information (even in release Standalone Player builds). Care should be taken not to accidentally ship a build containing symbols.
  • Use Platform SDK Linker: Disables cross compilation support (Only applicable to Windows/macOS/Linux Standalone Players) (see Burst AOT Requirements).
  • Target 32Bit CPU Architectures: Allows you to specify the CPU architectures supported for 32 bit builds (shown when supported). The default is SSE2 and SSE4 selected.
  • Target 64Bit CPU Architectures: Allows you to specify the CPU architectures supported for 64-bit builds (shown when supported). The default is SSE2 and AVX2 selected.
  • Optimize For: What optimization options Burst should compile with.
  • Disabled Warnings: Allows you to specify a list of Burst warnings that should be disabled for a player build. Passed as a semi-colon seperated list.

CPU Architecture is currently only supported for Windows, macOS, and Linux. Burst will generate a Standalone Player that supports the CPU architectures you have selected. A special dispatch is generated into the module, so that the code generated will detect the CPU being used and select the appropriate CPU architecture at runtime.

You can set the Burst AOT settings as required for each of the supported platforms. The options are saved per platform as part of the project settings.

Note: Any Optimize For setting is the global default optimization setting for any Burst job or function-pointer. If any assembly-level BurstCompile, or a specific Burst job or function-pointer, has an OptimizeFor setting, that will take precedence over the global optimization setting for those jobs.

Burst AOT Requirements

Desktop platforms with cross compilation enabled (the default behaviour)

Burst compilation for desktop platforms (macOS, Linux, Windows) no longer requires external toolchain support when building a Standalone Player (since Burst 1.3.0-preview.1). This should work out of the box, but can be disabled in Burst AOT Settings if needed.

Other platforms and desktops when cross compilation is disabled

If compiling for a non desktop platform, or you have disabled cross compilation support, then Burst compilation requires specific platform compilation tools (similar to IL2CPP), the below table can be used to determine the current level of support for AOT compilation.

  • If a host/target combination is not listed, it is at present not supported for Burst compilation.
  • If a target is not valid (missing tools/unsupported), Burst compilation will not be used (may fail), but the target will still be built without Burst optimisations.

Host Editor Platform Target Player Platform Supported CPU Architectures External Toolchain Requirements
Windows Windows x86 (SSE2, SSE4), x64 (SSE2, SSE4, AVX, AVX2)
Windows Universal Windows Platform x86 (SSE2, SSE4), x64 (SSE2, SSE4, AVX, AVX2), ARM32 (Thumb2, Neon32), ARMV8 AARCH64 Visual Studio 2017
Universal Windows Platform Development Workflow
C++ Universal Platform Tools
Windows Android x86 SSE2, ARM32 (Thumb2, Neon32), ARMV8 AARCH64 Android NDK.
It is preferred to use the one installed by Unity (via Add Component), but will fall back to the one specified by ANDROID_NDK_ROOT environment variable if the Unity external tools settings are not configured.
Windows Magic Leap ARMV8 AARCH64 Lumin SDK must be installed via Magic Leap Package Manager and configured in the Unity Editor's External Tools Preferences.
Windows Xbox One x64 SSE4 Microsoft XDK or Microsoft GDK
Windows Xbox Series x64 AVX2 Microsoft GDK
Windows PS4 x64 SSE4 Minimum PS4 SDK version 8.00
Windows PS5 x64 AVX2 Minimum PS5 SDK version 2.00
Windows Nintendo Switch ARMV8 AARCH64
macOS macOS x64 (SSE2, SSE4, AVX, AVX2), Apple Silicon
macOS iOS ARM32 Thumb2/Neon32, ARMV8 AARCH64 Xcode with command line tools installed (xcode-select --install)
macOS Android x86 SSE2, ARM32 Thumb2/Neon32, ARMV8 AARCH64 Android NDK 13 or higher - It is preferred to use the one installed by Unity (via Add Component).
Will fall back to the one specified by ANDROID_NDK_ROOT environment variable if the Unity external tools settings are not configured.
macOS Magic Leap ARMV8 AARCH64 Lumin SDK must be installed via Magic Leap Package Manager and configured in the Unity Editor's External Tools Preferences.
Linux Linux x64 (SSE2, SSE4, AVX, AVX2)

Notes:

  • Burst supports cross compilation between desktop platforms (macOS/Linux/Windows) by default.
  • The UWP build will always compile all four targets (x86, x64, ARMv7 and ARMv8).

Burst Targets

When Burst compiles for multiple targets during an AOT build, it has to do seperate compilations underneath to support this. For example, if you were compiling for X64_SSE2 and X64_SSE4, the compiler will have to do two separate compilations underneath to generate code for each of the targets you choose.

To keep the combinations of targets to a minimum, we make certain Burst targets require multiple processor instruction sets underneath:

  • SSE4.2 is gated on having SSE4.2 and POPCNT instruction sets.
  • AVX2 is gated on having AVX2, FMA, F16C, BMI1, and BMI2 instruction sets.
