Ambient Occlusion

The Ambient Occlusion effect calculates points in your scene that are exposed to ambient lighting. It then darkens areas that are hidden from the ambient light, such as creases, holes, and spaces between objects which are close together.

You can achieve the Ambient Occlusion effect in two ways: in real-time as a full-screen post-processing effect, or as a baked lighting effect (see Baked Ambient Occlusion). The real-time Ambient Occlusion effect can be resource-intensive, which makes it better for desktop or console platforms. Its impact on processing time depends on screen resolution and effects properties.

The Ambient Occlusion effect in this package has two modes:

• Scalable Ambient Obscurance
• Multi-scale Volumetric Occlusion

Scalable Ambient Obscurance

This is a standard implementation of ambient obscurance that works on older platforms. If you need to target a compute-enabled platform, use the Multi-scale Volumetric Occlusion mode instead.

Performance

The Scalable Ambient Obscurance mode can be resource-intensive, especially when viewed very close to the Camera. To improve performance, use a low Radius setting, to sample pixels that are close and in clip space to the source pixel. This makes caching more efficient. Using a higher Radius setting generates samples further away from the source pixel and won’t benefit from caching, which slows down the effect.

Because of the Camera’s perspective, objects near the front plane use larger radiuses than those far away, so computing the ambient occlusion pass for an object close to the camera will be slower than for an object further away that only occupies a few pixels on screen.

Dropping the Quality setting down will improve performance too.

Scalable Ambient Obsurance should not be used on mobile platforms or consoles as the Multi-scale Volumetric Occlusion mode is faster and provides better graphics for these platforms.

Requirements

• Depth & Normals textures
• Shader model 3

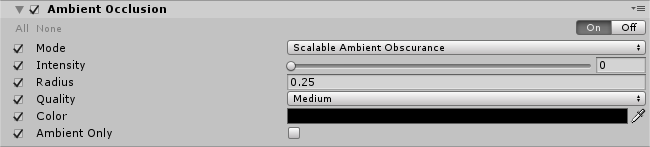

Properties

Property	Function
Intensity	Adjust the degree of darkness Ambient Occlusion produces.
Radius	Set the radius of sample points, which controls the extent of darkened areas.
Quality	Define the number of sample points, which affects quality and performance.
Color	Set the tint color of the ambient occlusion.
Ambient Only	Enable this checkbox to make the Ambient Occlusion effect only affect ambient lighting. This option is only available with the Deferred rendering path and HDR rendering.

Multi-scale Volumetric Occlusion

This mode is optimized for consoles and desktop platforms. It has better graphics and runs faster than Scalable Ambient Obscurance on these platforms but requires compute shader support.

Requirements

• Compute shader support
• Shader model 4.5

Properties

Property	Function
Intensity	Adjust the degree of darkness Ambient Occlusion produces.
Thickness Modifier	Modify the thickness of occluders. This increases dark areas but can introduce dark halos around objects.
Color	Set the tint color of the ambient occlusion.
Ambient Only	Enable this checkbox to make the Ambient Occlusion effect only affect ambient lighting. This option is only available with the Deferred rendering path and HDR rendering.
