Build layout report

The build layout report provides detailed information and statistics about your Addressables builds, including:

• Description of AssetBundles
• Sizes of each Asset and AssetBundle
• Explanation of non-Addressable Assets implicitly included in AssetBundles as dependencies
• AssetBundle dependencies

When enabled, the Addressables build script creates the report whenever you build Addressables content. You can enable the report in the Addressables section of the Preferences window. You can find the report in your project folder at Library/com.unity.addressables/buildlayout.txt. Producing the report does increase build time.

See Building your Addressable content for more information about building content.

Creating a build report

To create a build report:

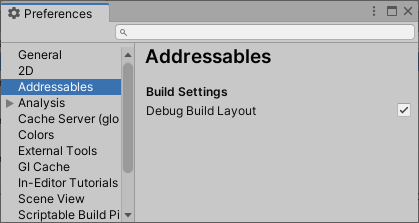

1. Enable the build report.

   1. Open the Unity Preferences window (menu: Edit > Preferences).
   2. Select Addressables from the list of preference types.
   3. Check the Debug Build Layout option.

2. Perform a full build of your Addressables content. (See Builds for more information.)

3. In a file system window, navigate to the Library/com.unity.addressables/ folder of your Unity project.

4. Open the buildlayout.txt file in a suitable text editor.

Report data

A build layout report contains the following information:

• Summary: provides an overview of the build
• Group: provides information for each group
• Asset bundle: provides information about each bundle built for a group
• Asset: provides information about each explicit asset in a bundle
• File: provides information about each serialized file in an AssetBundle archive
• Built-in bundles: provides information about bundles created for assets, such as the default shader, that are built into Unity

Summary section

Provides a summary of the build.

Name	Purpose
Addressable Groups	The number of groups included in the build.
Explicit Assets Addressed	The number of Addressable assets in the build (this number doesn't include assets in the build that are referenced by an Addressable asset, but which aren't marked as Addressable).
Total Bundle	The number of AssetBundles created by the build, including how many contain Scene data.
Total Build Size	The combined size of all AssetBundles.
Total MonoScript Size	The size of serialized MonoBehaviour and SerializedObject instances.
Total AssetBundle Object Size

Group section

Reports how Addressables packed the assets in a group into AssetBundles.

Name	Purpose
Group summary	Name, number of bundles created for group, total size, and number of explicit assets built for the group.
Schemas	Schemas and settings for the group.
Asset bundles	See AssetBundle information.

AssetBundle information

Reports details for each AssetBundle built for a group.

Name	Purpose
File name	The file name of the AssetBundle.
Size
Compression	The compression setting used for the bundle.
Object size
Bundle Dependencies	The list of other AssetBundles the current bundle depends upon. These bundles are always loaded with the current bundle.
Expanded Bundle Dependencies
Explicit Assets	Asset information about Addressables included in the bundle.
Files	File information about the files in the AssetBundle archive. Scene bundles contain up to two files per Scene, non-Scene bundles contain only one file.

Asset information

Provides Information for each asset in the Explicit Assets section.

Name	Purpose
Asset path	The path to the asset in your project
Total Size
Size from Objects
Size from Streamed Data
File Index	The index of the file in the AssetBundle in which this asset is located.
Addressable Name	The address of the asset.
External References
Internal References

File information

Provides details about each serialized file in an AssetBundle archive

Name	Purpose
File summary	Index in file list, number and size of serialized MonoScripts in the file
File sections	A serialized file can have one or more of the following sections:
No extension --
.resS --
.resource --
.sharedAssets --
Data from Other Assets	Dependent assets referenced by assets in the file.

Built-in Bundles

Lists any bundles that Addressables created from assets, such as the default shaders, that are provided as part of the Unity Engine. The Addressables build places such assets in the separate bundles listed here when needed to avoid duplicating the assets across multiple bundles as implicit dependencies.
