Add documentation to a Custom C# node

You can also add Graph Inspector documentation to a Custom C# node. Visual Scripting displays the documentation in the Graph Inspector when you select a node in a Script Graph. The documentation isn't required to use the node, but can help your users understand the purpose and usage of a node.

To add documentation to a node:

1. [!includeopen-project-window]

   Note

   If you already have an Editor folder in your project, you can skip Steps 2-3.

2. Right-click your Assets folder or select Add (+), then select Folder.

3. Name the folder Editor.

4. Do one of the following:

   • Right-click your Editor folder in the Project window's folder list.
   • Right-click anywhere in the Project window's preview pane with your Editor folder selected.

5. [!includecreate-c-script]

6. Enter a name, such as MyNodeDescriptor for the new script file.

7. Press Enter.

8. [!includeopen-new-external-code]

9. In your external editor, copy and paste the following code into the C# script:

   using System;
   using Unity.VisualScripting;
   using UnityEngine;

   [Descriptor(typeof(MyNode))]
   public class MyNodeDescriptor : UnitDescriptor<MyNode>
   {
   public MyNodeDescriptor(MyNode unit) : base(unit) {}

   protected override void DefinedPort(IUnitPort port, UnitPortDescription description)
   {
       base.DefinedPort(port, description);
       switch (port.key)
       {
           case "inputTrigger":
               description.summary = "Trigger the concatenation of two strings, myValueA and myValueB, and return the result string on the Result port.";
               break;
           case "myValueA":
               description.summary = "First string value.";
               break;
           case "myValueB":
               description.summary = "Second string value.";
               break;
           case "outputTrigger":
               description.summary = "Execute the next action in the Script Graph after concatenating myValueA and myValueB.";
               break;
           case "result":
               description.summary = "The result string obtained from concatenating myValueA and myValueB.";
               break;
       }
   }
   }


   You can modify the script to suit the specifics of your own node.


10. [!includesave-script]

11. [!includereturn-unity]

12. Do one of the following:

    • [!includeopen-graph-w-node].
    • [!includeff-add-node]

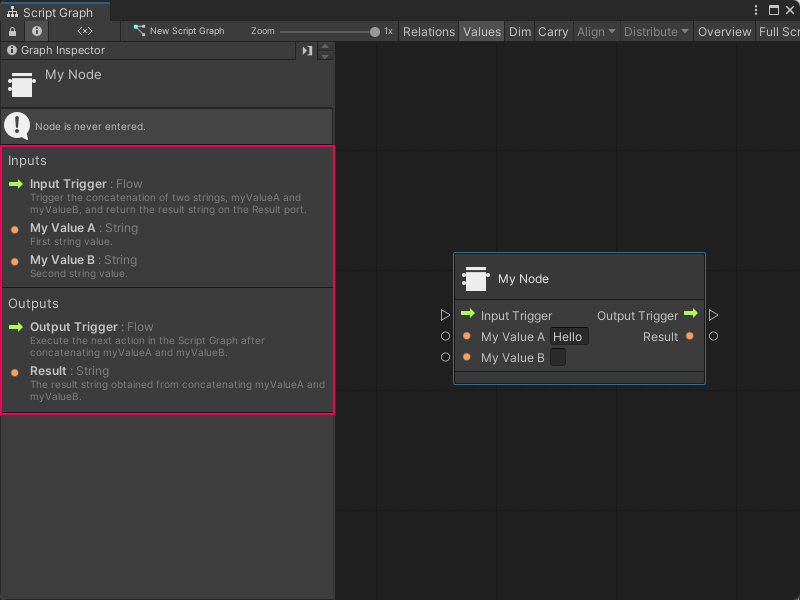

13. Select the node and open the Graph Inspector to view your documentation.



Next steps

After you add documentation to a node, you can choose to further customize the node with node class and port attributes.
