Baked Lit Shader

In the Universal Render Pipeline (URP), use this Shader for stylised games or apps that only require baked lightingvia lightmaps and Light Probes. This shader does not use Physically Based Shading and has no real-time lighting, so all real-time relevant shader keywords and variants are stripped from the Shader code, which makes it faster to calculate.

Using the Baked Lit Shader in the Editor

To select and use this Shader:

1. In your Project, create or find the Material you want to use the Shader on. Select the Material. A Material Inspector window opens.
2. Click Shader, and select Universal Render Pipeline > Baked Lit.

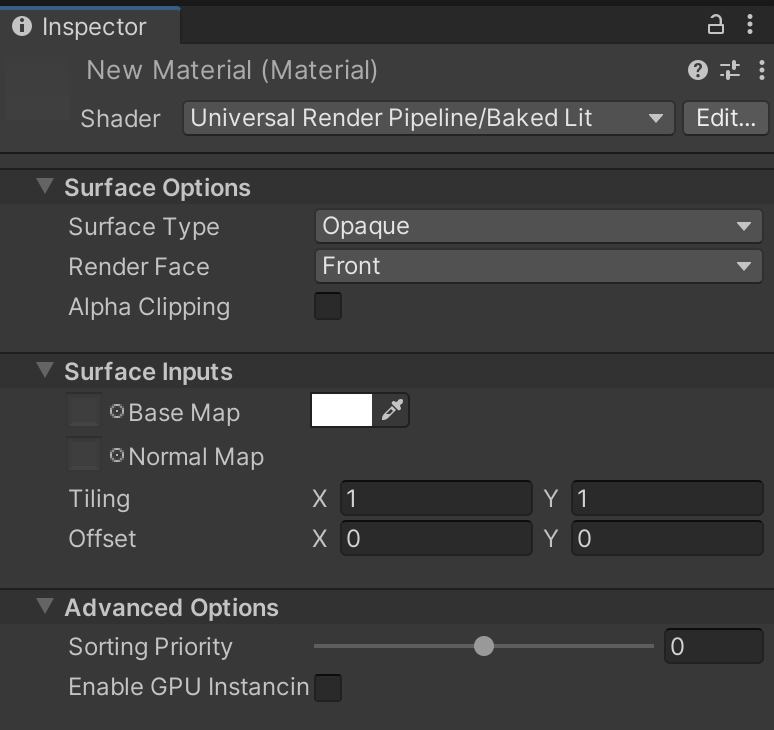

UI overview

The Inspector window for this Shader contains these elements:

• Surface Options
• Surface Inputs
• Advanced

Surface Options

The Surface Options control how the Material is rendered on a screen.

Property	Description
Surface Type	Use this drop-down to apply an Opaque or Transparent surface type to the Material. This determines which render pass URP renders the material in. Opaque surface types are always fully visible, regardless of what’s behind them. URP renders opaque Materials first. Transparent surface types are affected by their background, and they can vary according to which type of transparent surface type you choose. URP renders transparent Materials in a separate pass after opaque objects. If you select Transparent, the Blending Mode drop-down appears.
Blending Mode	Use this drop-down to determine how URP calculates the color of each pixel of the transparent Material by blending the Material with the background pixels. Alpha uses the Material’s alpha value to change how transparent an object is. 0 is fully transparent. 1 appears fully opaque, but the Material is still rendered during the Transparent render pass. This is useful for visuals that you want to be fully visible but to also fade over time, like clouds. Premultiply applies a similar effect to the Material as Alpha, but preserves reflections and highlights, even when your surface is transparent. This means that only the reflected light is visible. For example, imagine transparent glass. Additive adds an extra layer to the Material, on top of another surface. This is good for holograms. Multiply multiplies the color of the Material with the color behind the surface. This creates a darker effect, like when you look through colored glass.
Render Face	Use this drop-down to determine which sides of your geometry to render. Front Face renders the front face of your geometry and culls the back face. This is the default setting. Back Face renders the front face of your geometry and culls the front face. Both makes URP render both faces of the geometry. This is good for small, flat objects, like leaves, where you might want both sides visible.
Alpha Clipping	Makes your Material act like a Cutout Shader. Use this to create a transparent effect with hard edges between the opaque and transparent areas. For example, to create blades of grass. To achieve this effect, URP does not render alpha values below the specified Threshold, which appears when you enable Alpha Clipping. You can set the Threshold by moving the slider, which accepts values from 0 to 1. All values above your threshold are fully opaque, and all values below your threshold are invisible. For example, a threshold of 0.1 means that URP doesn't render alpha values below 0.1. The default value is 0.5.

Surface Inputs

The Surface Inputs describe the surface itself. For example, you can use these properties to make your surface look wet, dry, rough, or smooth.

Property	Description
Base Map	Adds color to the surface, also known as the diffuse map. To assign a Texture to the Base Map setting, click the object picker next to it. This opens the Asset Browser, where you can select from the Textures in your Project. Alternatively, you can use the color picker. The color next to the setting shows the tint on top of your assigned Texture. To assign another tint, you can click this color swatch. If you select Transparent or Alpha Clipping under Surface Options, your Material uses the Texture’s alpha channel or color.
Normal Map	Adds a normal map to the surface. With a normal map, you can add surface details like bumps, scratches and grooves. To add the map, click the object picker next to it. The normal map picks up ambient lighting in the environment.
Tiling	A 2D multiplier value that scales the Texture to fit across a mesh according to the U and V axes. This is good for surfaces like floors and walls. The default value is 1, which means no scaling. Set a higher value to make the Texture repeat across your mesh. Set a lower value to stretch the Texture. Try different values until you reach your desired effect.
Offset	The 2D offset that positions the Texture on the mesh. To adjust the position on your mesh, move the Texture across the U or V axes.

Advanced

The Advanced settings affect the underlying calculations of your rendering. They do not have a visible effect on your surface.

Property	Description
Enable GPU Instancing	Makes URP render meshes with the same geometry and Material in one batch, when possible. This makes rendering faster. URP cannot render Meshes in one batch if they have different Materials or if the hardware does not support GPU instancing.
Sorting Priority	Use this slider to determine the chronological rendering order for a Material. URP renders Materials with lower values first. You can use this to reduce overdraw on devices by making the pipeline render Materials in front of other Materials first, so it doesn't have to render overlapping areas twice. This works similarly to the render queue in the built-in Unity render pipeline.
