How to perform a full screen blit in Single Pass Instanced rendering in XR

The example on this page describes how to create a custom Renderer Feature that performs a full screen blit in Single Pass Instanced rendering in XR.

Example overview

This example implements the following solution:

A custom Renderer Feature calls a custom Render Pass.
The Render Pass blits the Opaque Texture to the the Camera color target for the current renderer. The render pass uses the command buffer to draw a full screen mesh for both eyes.

The example includes the shader that performs the GPU side of the rendering. The shader samples the color buffer using XR sampler macros.

Prerequisites

This example requires the following:

The Scriptable Render Pipeline Settings property refers to a URP asset (Project Settings > Graphics > Scriptable Render Pipeline Settings).

Create example Scene and GameObjects

To follow the steps in this example, create a new Scene with the following GameObjects:

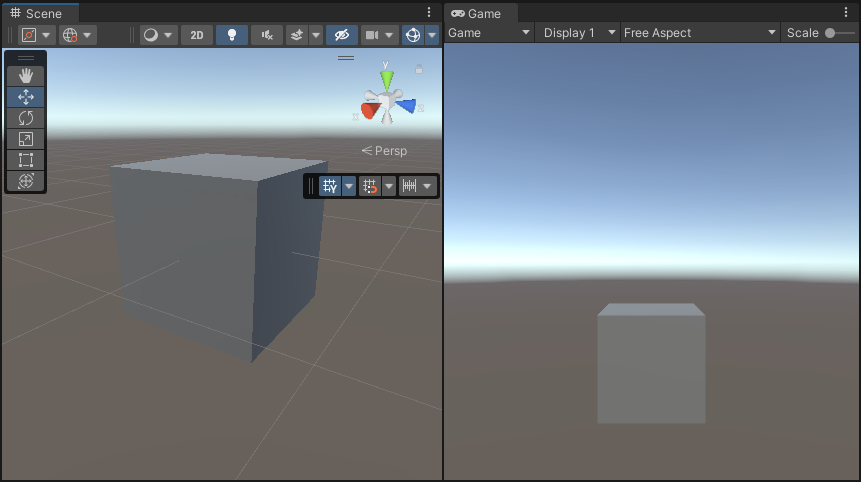

Create a Cube. Ensure that the Cube is clearly visible from the main Camera.

Now you have the Scene necessary to follow the steps in this example.

Example implementation

This section assumes that you created a Scene as described in section Create example Scene and GameObjects.

Follow these steps to create a custom Renderer Feature with a custom Render Pass.

Create a new C# script. Call it ColorBlitRendererFeature.cs. This script implements the custom Renderer Feature.

using UnityEngine;
using UnityEngine.Rendering;
using UnityEngine.Rendering.Universal;

internal class ColorBlitRendererFeature : ScriptableRendererFeature
{
    public Shader m_Shader;
    public float m_Intensity;

    Material m_Material;

    ColorBlitPass m_RenderPass = null;

    public override void AddRenderPasses(ScriptableRenderer renderer, ref RenderingData renderingData)
    {
        if (renderingData.cameraData.cameraType == CameraType.Game)
        {
            //Calling ConfigureInput with the ScriptableRenderPassInput.Color argument ensures that the opaque texture is available to the Render Pass
            m_RenderPass.ConfigureInput(ScriptableRenderPassInput.Color);
            m_RenderPass.SetTarget(renderer.cameraColorTarget, m_Intensity);
            renderer.EnqueuePass(m_RenderPass);
        }
    }

    public override void Create()
    {
        if (m_Shader != null)
            m_Material = new Material(m_Shader);

        m_RenderPass = new ColorBlitPass(m_Material);
    }

    protected override void Dispose(bool disposing)
    {
        CoreUtils.Destroy(m_Material);
    }
}

Create a new C# script. Call it ColorBlitPass.cs. This script implements the custom Render Pass that performs the custom blit draw call.

This Render Pass uses the cmd.DrawMesh method to draw a full-screen quad and perform the blit operation.

NOTE: Do not use the cmd.Blit method in URP XR projects because that method has compatibility issues with the URP XR integration. Using cmd.Blit might implicitly enable or disable XR shader keywords, which breaks XR SPI rendering.

using UnityEngine;
using UnityEngine.Rendering;
using UnityEngine.Rendering.Universal;

internal class ColorBlitPass : ScriptableRenderPass
{
    ProfilingSampler m_ProfilingSampler = new ProfilingSampler("ColorBlit");
    Material m_Material;
    RenderTargetIdentifier m_CameraColorTarget;
    float m_Intensity;

    public ColorBlitPass(Material material)
    {
        m_Material = material;
        renderPassEvent = RenderPassEvent.BeforeRenderingPostProcessing;
    }

    public void SetTarget(RenderTargetIdentifier colorHandle, float intensity)
    {
        m_CameraColorTarget = colorHandle;
        m_Intensity = intensity;
    }

    public override void OnCameraSetup(CommandBuffer cmd, ref RenderingData renderingData)
    {
        ConfigureTarget(new RenderTargetIdentifier(m_CameraColorTarget, 0, CubemapFace.Unknown, -1));
    }

    public override void Execute(ScriptableRenderContext context, ref RenderingData renderingData)
    {
        var camera = renderingData.cameraData.camera;
        if (camera.cameraType != CameraType.Game)
            return;

        if (m_Material == null)
            return;

        CommandBuffer cmd = CommandBufferPool.Get();
        using (new ProfilingScope(cmd, m_ProfilingSampler))
        {
            m_Material.SetFloat("_Intensity", m_Intensity);
            cmd.SetRenderTarget(new RenderTargetIdentifier(m_CameraColorTarget, 0, CubemapFace.Unknown, -1));
            //The RenderingUtils.fullscreenMesh argument specifies that the mesh to draw is a quad.
            cmd.DrawMesh(RenderingUtils.fullscreenMesh, Matrix4x4.identity, m_Material);
        }
        context.ExecuteCommandBuffer(cmd);
        cmd.Clear();

        CommandBufferPool.Release(cmd);
    }
}

Create the shader that performs the blit operation. Call the shader file ColorBlit.shader. The vertex function outputs the full-screen quad position. The fragment function samples the color buffer and returns the color * float4(0, _Intensity, 0, 1) value to the render target.

Shader "ColorBlit"
{
        SubShader
    {
        Tags { "RenderType"="Opaque" "RenderPipeline" = "UniversalPipeline"}
        LOD 100
        ZWrite Off Cull Off
        Pass
        {
            Name "ColorBlitPass"

            HLSLPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"

            struct Attributes
            {
                float4 positionHCS   : POSITION;
                float2 uv           : TEXCOORD0;
                UNITY_VERTEX_INPUT_INSTANCE_ID
            };

            struct Varyings
            {
                float4  positionCS  : SV_POSITION;
                float2  uv          : TEXCOORD0;
                UNITY_VERTEX_OUTPUT_STEREO
            };

            Varyings vert(Attributes input)
            {
                Varyings output;
                UNITY_SETUP_INSTANCE_ID(input);
                UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(output);

                // Note: The pass is setup with a mesh already in clip
                // space, that's why, it's enough to just output vertex
                // positions
                output.positionCS = float4(input.positionHCS.xyz, 1.0);

                #if UNITY_UV_STARTS_AT_TOP
                output.positionCS.y *= -1;
                #endif

                output.uv = input.uv;
                return output;
            }

            TEXTURE2D_X(_CameraOpaqueTexture);
            SAMPLER(sampler_CameraOpaqueTexture);

            float _Intensity;

            half4 frag (Varyings input) : SV_Target
            {
                UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(input);
                float4 color = SAMPLE_TEXTURE2D_X(_CameraOpaqueTexture, sampler_CameraOpaqueTexture, input.uv);
                return color * float4(0, _Intensity, 0, 1);
            }
            ENDHLSL
        }
    }
}

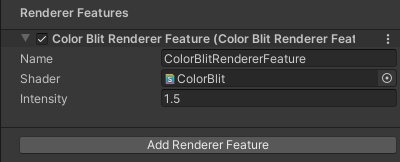

Add the ColorBlitRendererFeature to the Universal Renderer asset.

For information on how to add a Renderer Feature, see the page How to add a Renderer Feature to a Renderer.

For this example, set the Intensity property to 1.5.

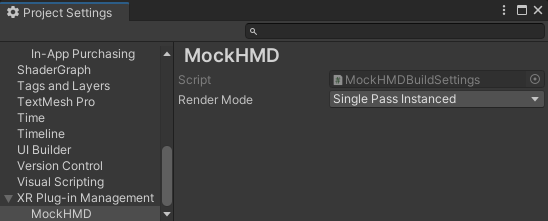

To visualize the example, configure the project to use XR SDK. Add the MockHMD XR Plugin to the project. Set the Render Mode property to Single Pass Instanced.

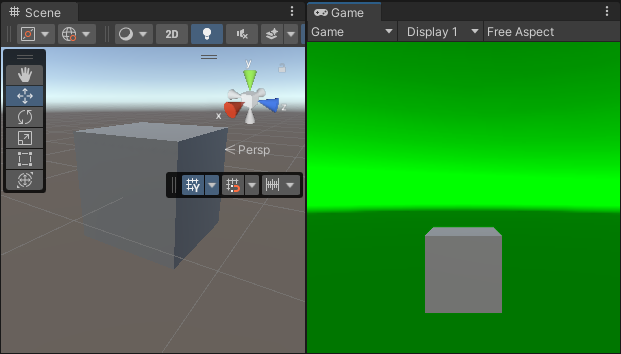

Unity shows the following views:

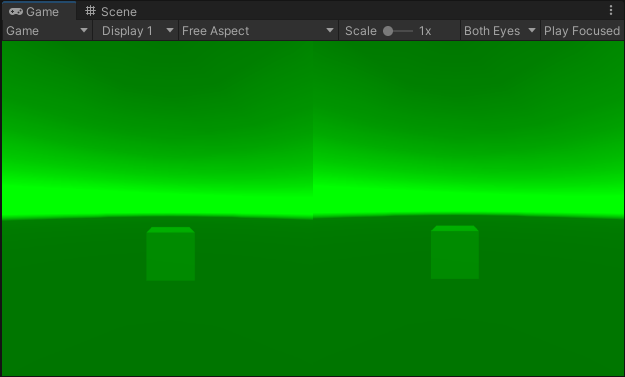

Enter the Play mode. Unity shows the color buffer.

The example is complete.
