Skeleton Sharing

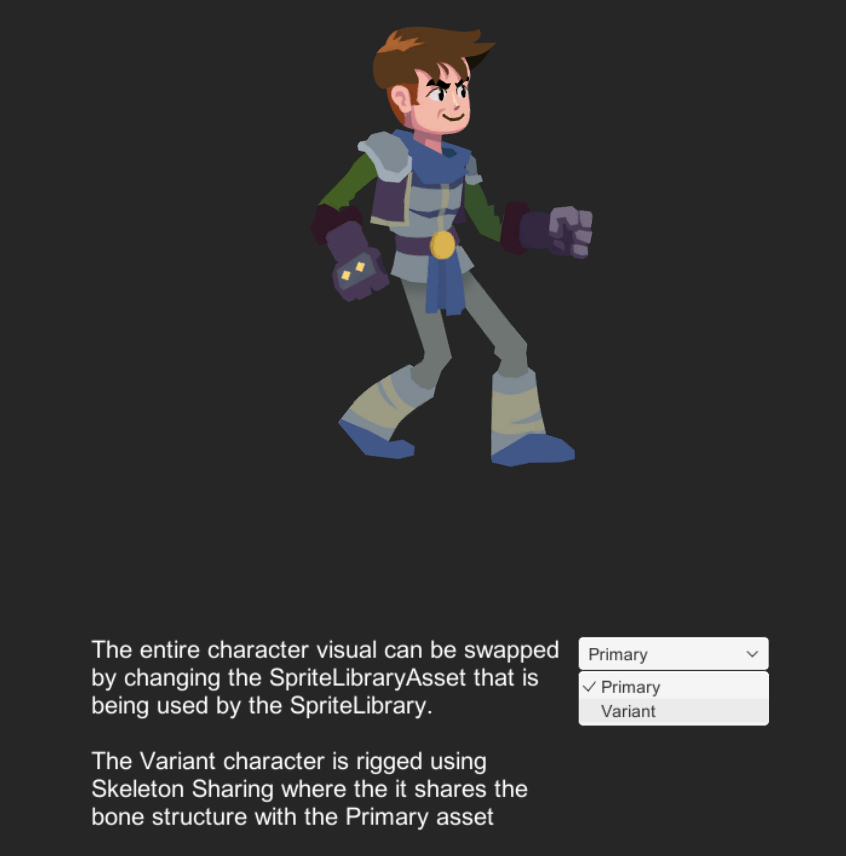

This sample demonstrates how Skeleton sharing can be set up and leverages on the other samples before this. Note that the following requires the PSD Importer installed. Open the 5 Skeleton Sharing.unity Scene to see this sample in action.

This sample's setup is similar to the one in the Full Skin Swap sample. However instead of using multi-skinned Sprites, this example uses the Prefab generated by the PSD Importer. The visual Assets are located in Assets/Samples/2D Animation/[X.Y.Z]/Samples/5 SpriteSwap/Sprites:

• Primary.psb
• Variant.psb

The Variant.psb uses the .skeleton Asset from the Primary.psb, which means that the Variant.psb is prepared using the same skeleton structure as the Primary.psb.

The Variant actor also uses the following Sprite Library Assets located in Assets/Samples/2D Animation/[X.Y.Z]/Samples/5 SpriteSwap/Sprites:

• Primary.spriteLib
• Variant.spriteLib

The Primary.spriteLib is assigned to the Main Library property for the Variant.spriteLib is. The Variant.spriteLib has been setup so that the torso Category is not overridden, which allows it to use the Sprite from Primary.spriteLib.

The Variant actor uses the same torso Sprite as the Primary actor.
